Revolux

Ultra Light Pickup Cabin

Revolux is a premium Ultra Light Pickup Cabin — quick to mount, easy to live in, and built to stay stable and consistent in every season.

Configure Revolux Request Offer

Ultra Light Pickup Cabin

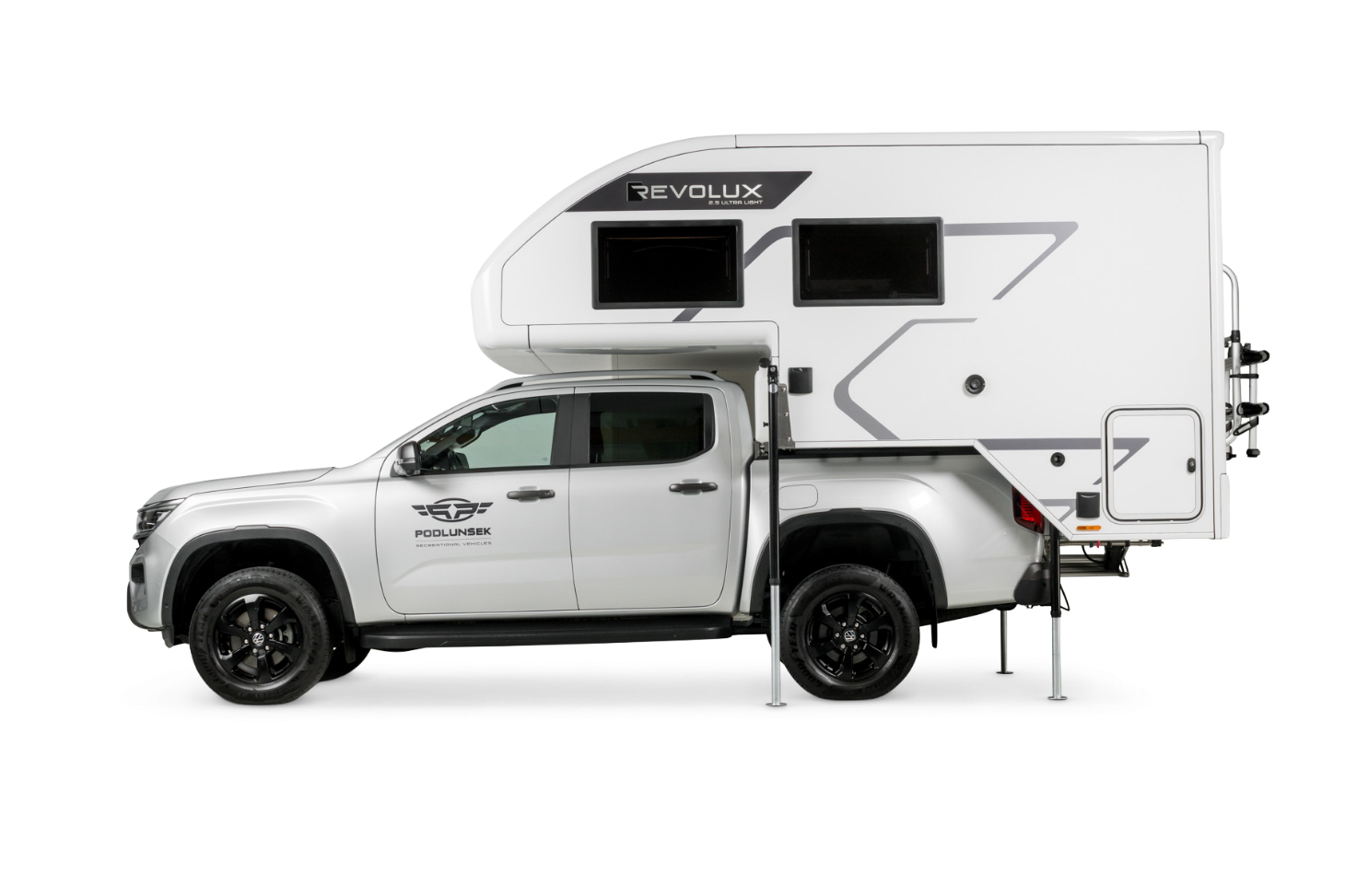

Revolux is a premium Ultra Light Pickup Cabin designed for pickup-based caravanning. This removable pickup cabin mounts securely on your pickup vehicle to create a true living space — and detaches easily when you want your vehicle back for everyday use.

Product features
Revolux

Refined craft. Smart systems.
Long-term confidence.

Refined
craft.
Smart
systems.
Long-term
confidence.

Ultra-Light Construction

Ultra-Light Construction

Stronger. Lighter
Engineered for efficiency.

Ultra-Light Construction

Removable & Flexible

Detachable. Flexible.
Freedom on and off the pickup.

Ultra-Light Construction

4-Seasons Ready

4-season ready. Insulated.
Heated for consistent comfort.

Ultra-Light Construction

Gas-Free System

Gas-free. Truma diesel heating.
Wallas 600D cooking.

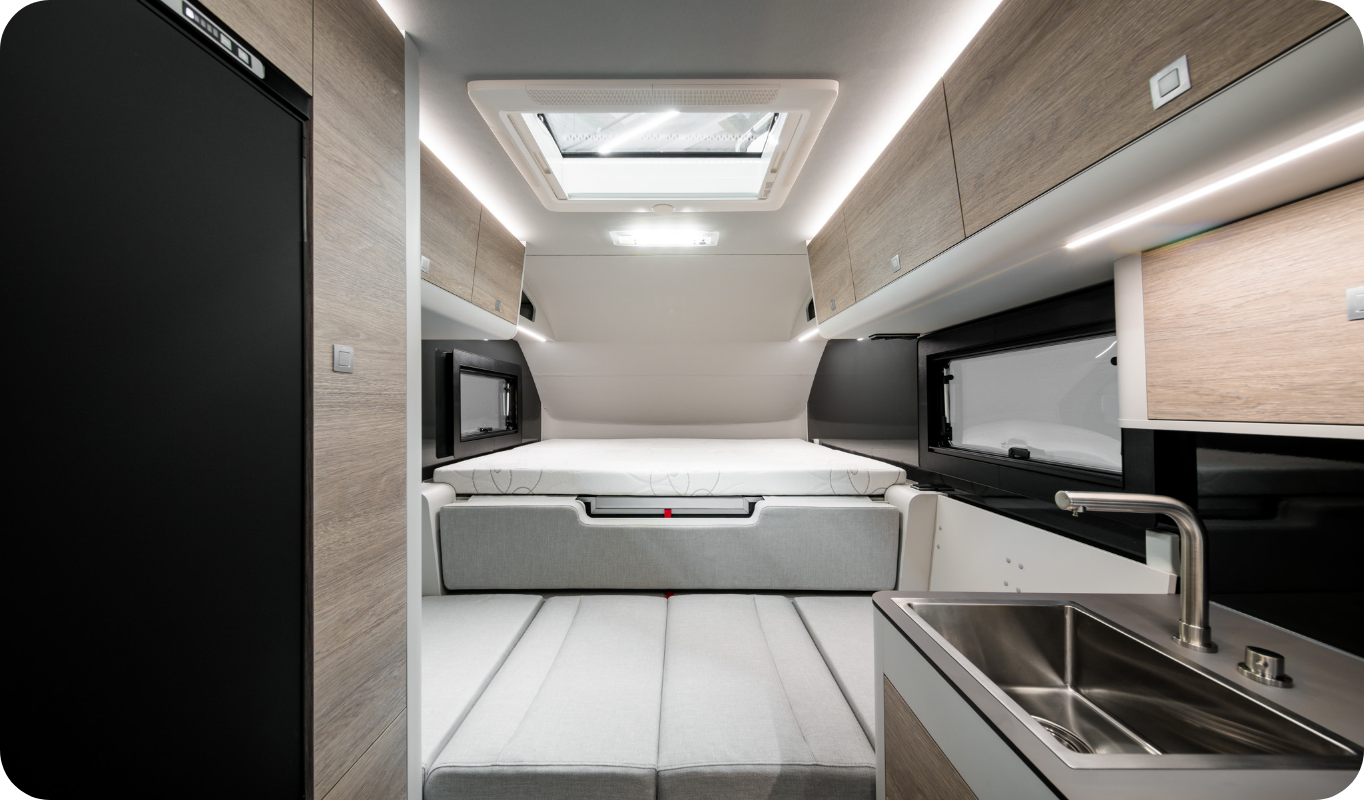

Reliability Reliability

What Makes Revolux Unique?

Revolux is based on four large, molded carbon components: the alcove, rear section, roof, and bed shell. This optimizes joints, increases rigidity, and keeps weight low. The slide-out table is also reinforced with carbon fiber parts for lasting stability under frequent use.

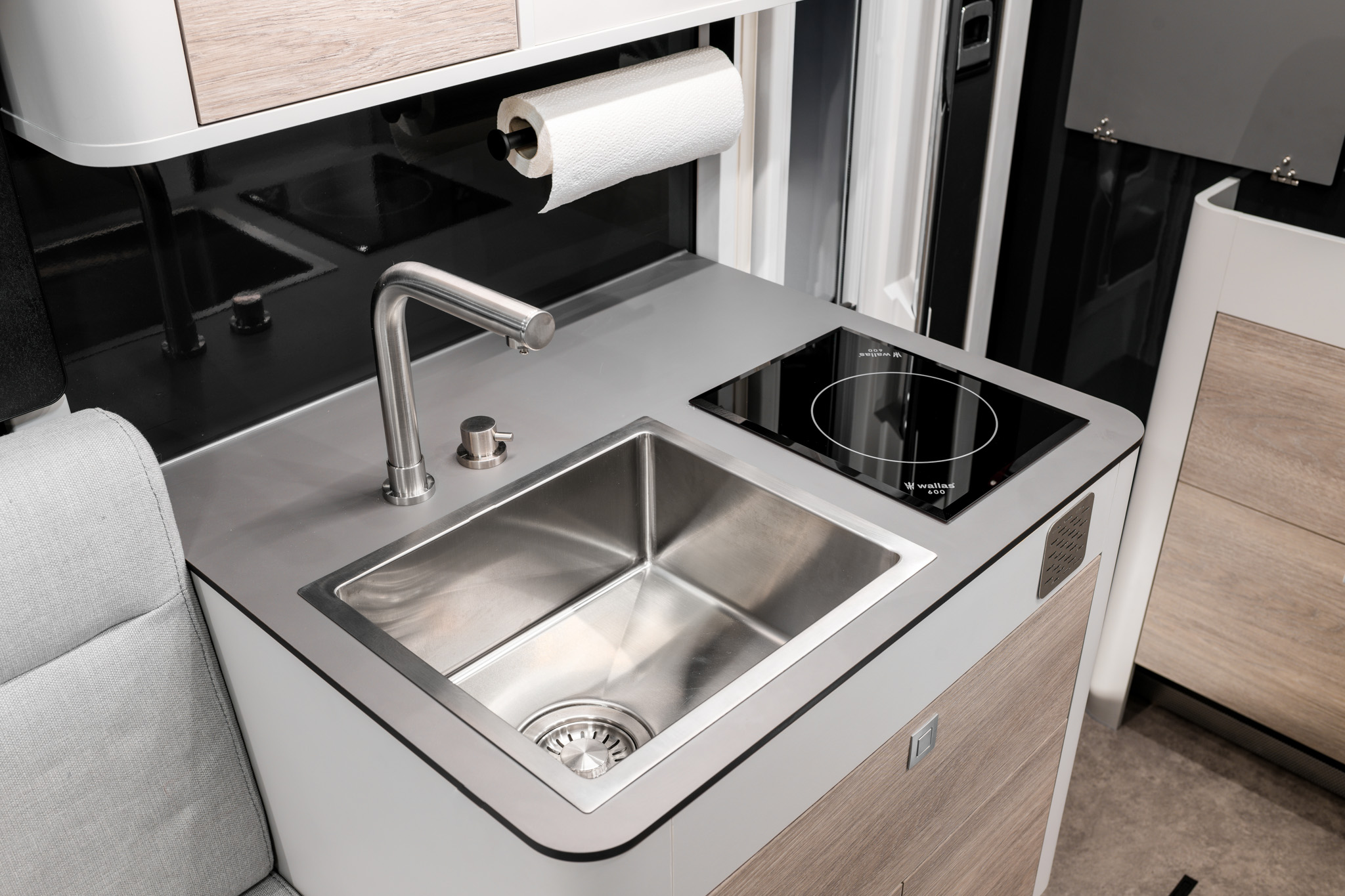

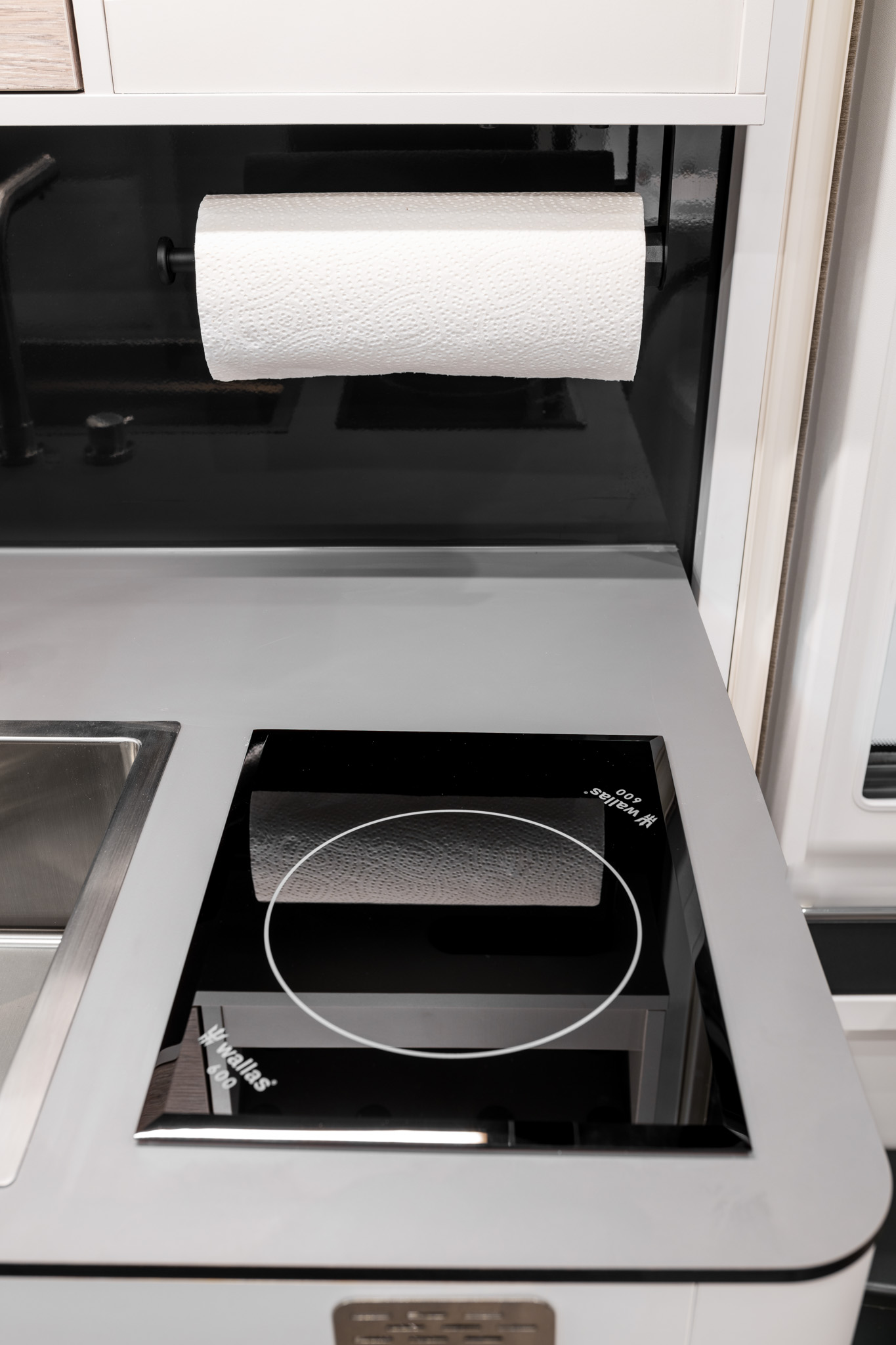

Wallas 600D diesel cooktop

safe, clean, and reliable.

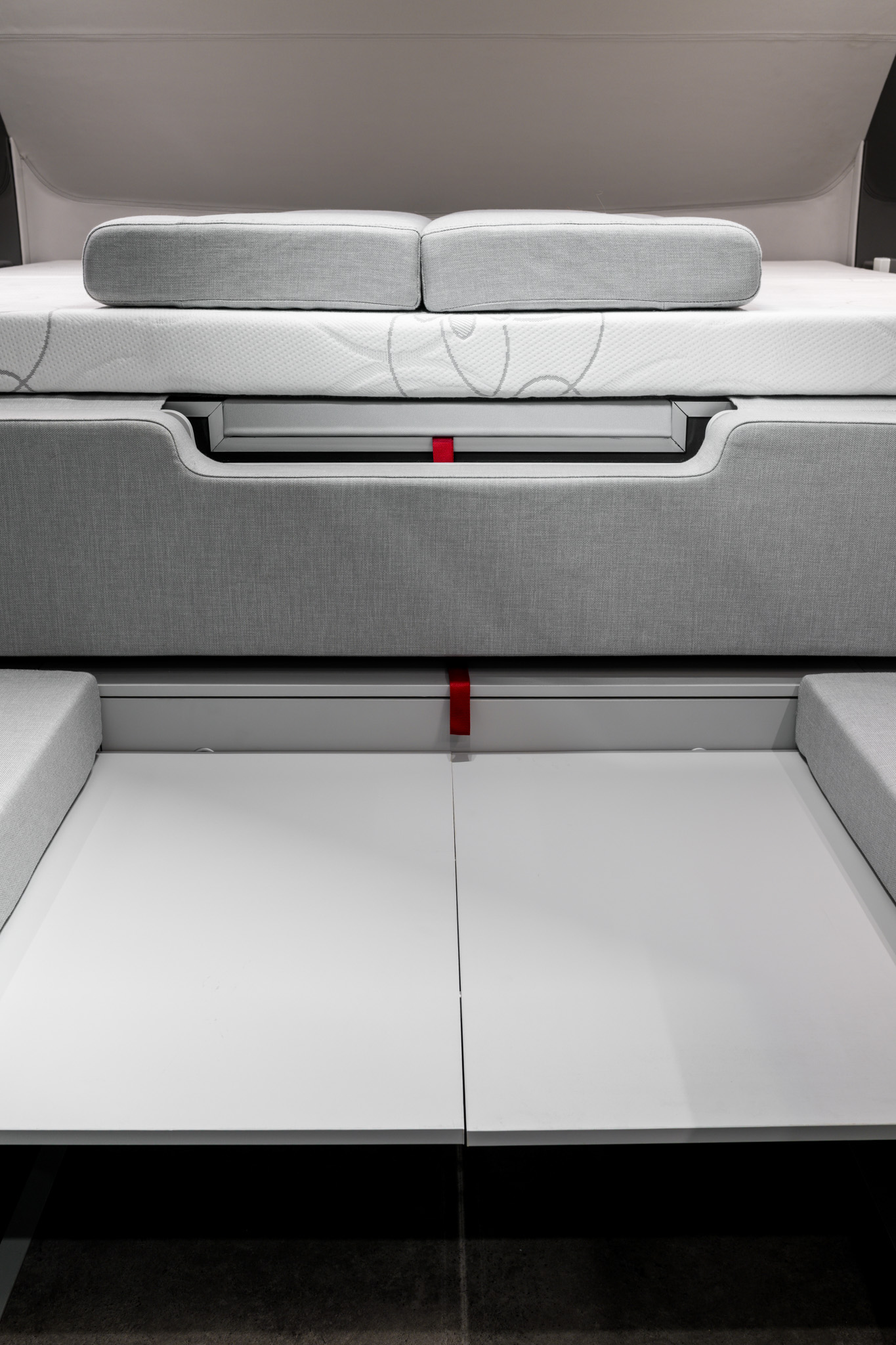

Compact bed extension.

Additional shelves in the overhead cabinets.

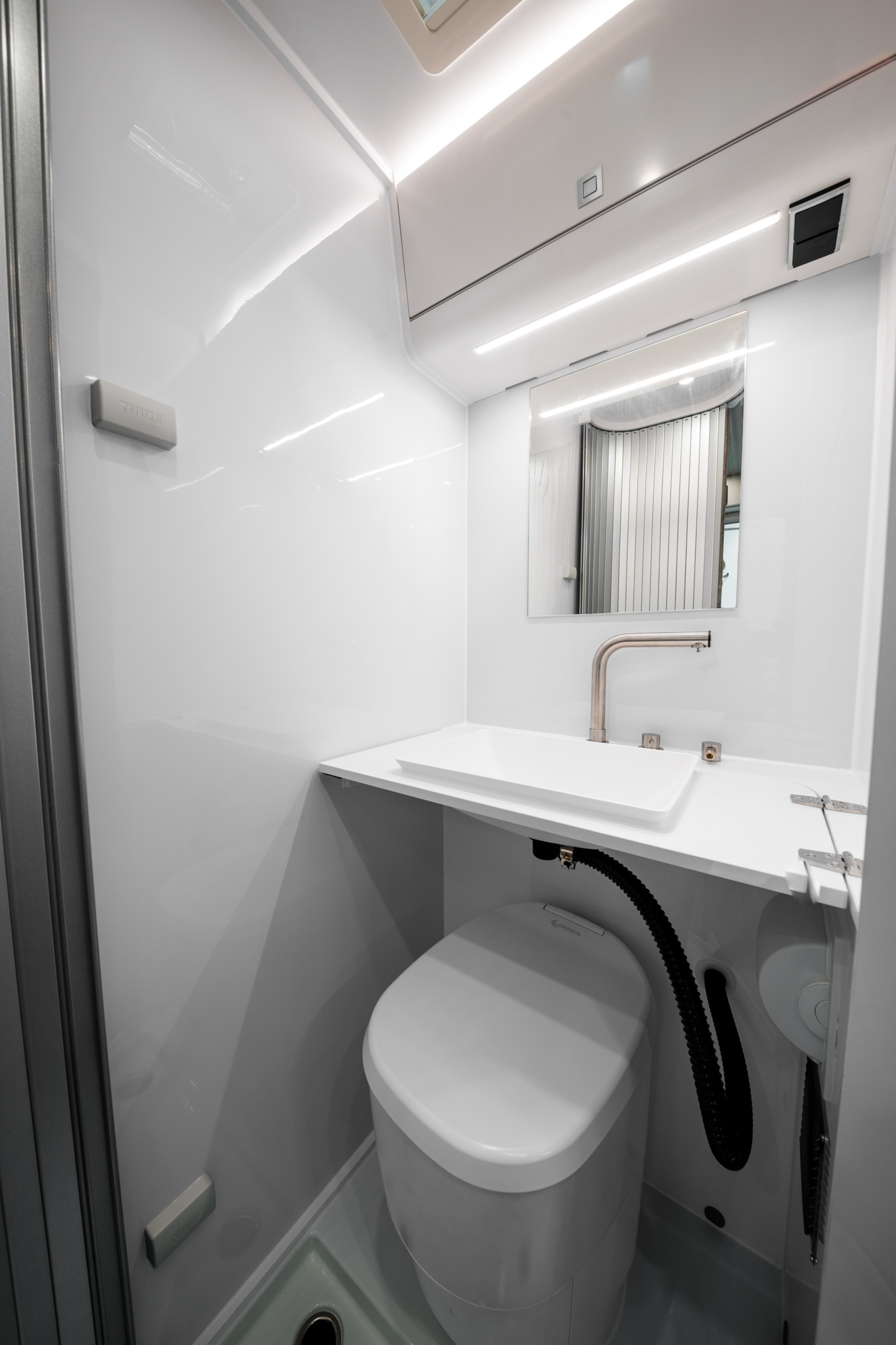

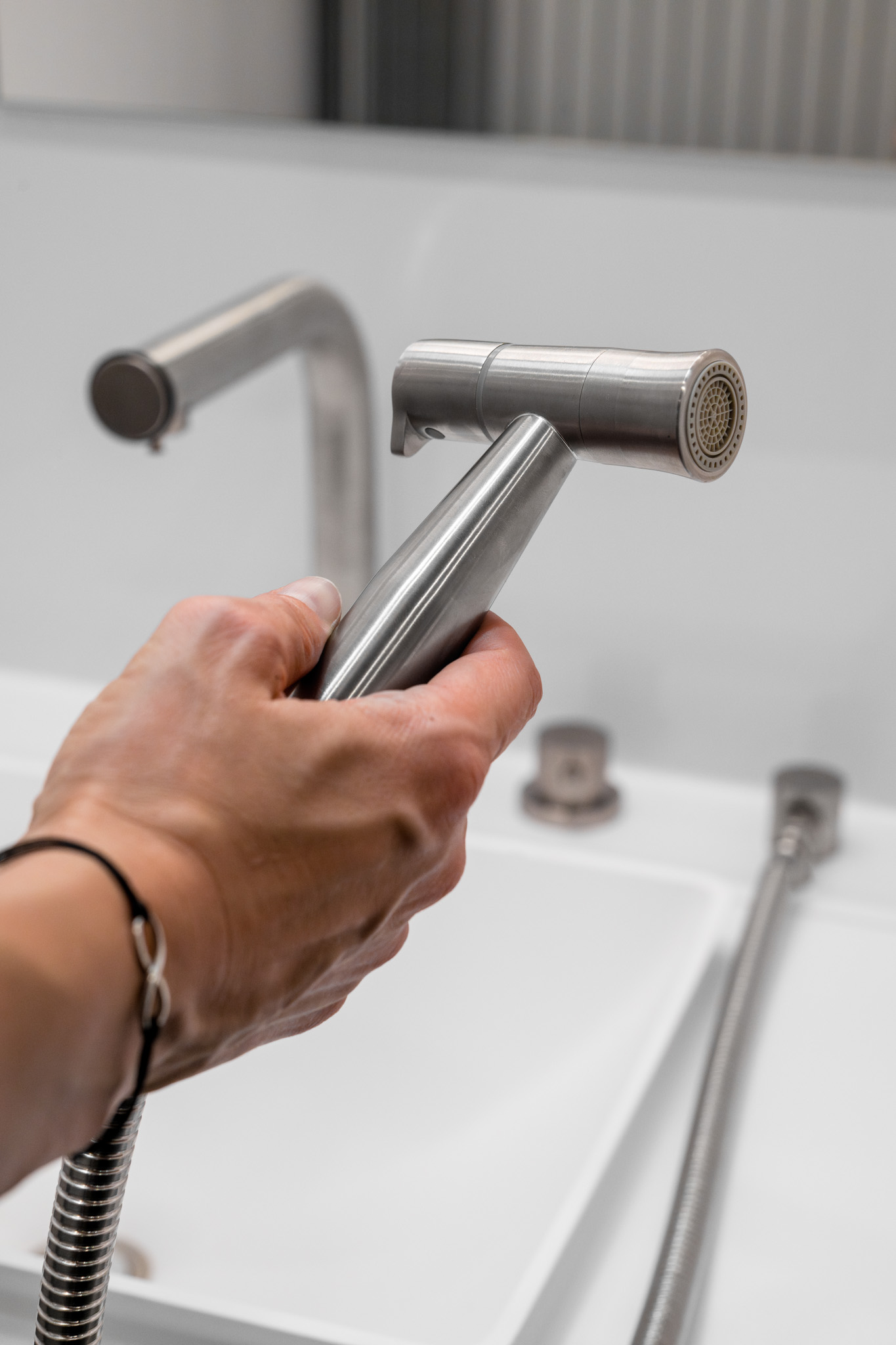

Premium kitchen and bathroom fittings by Queensize.

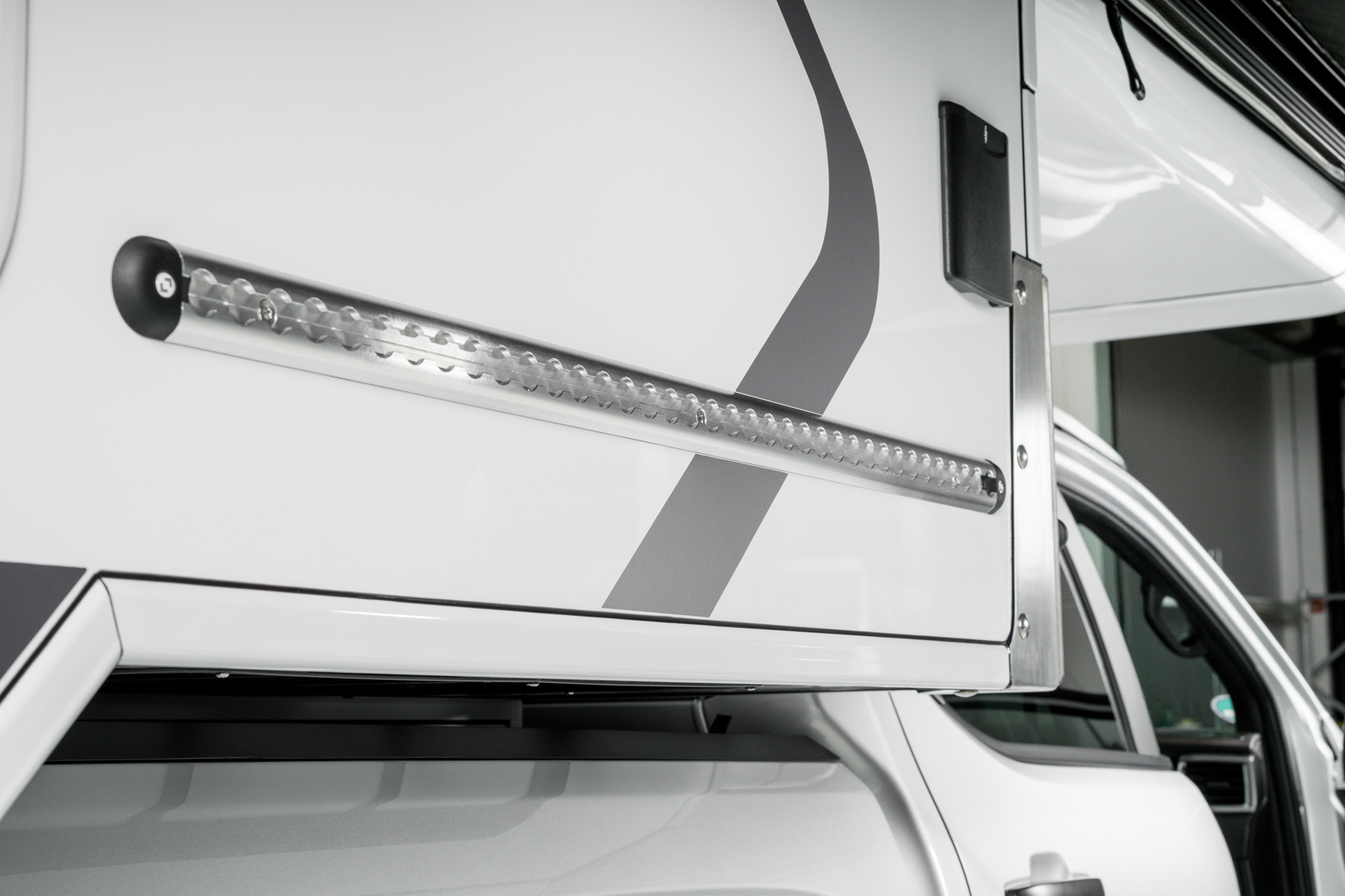

Airline track system

flexible options for every trip.

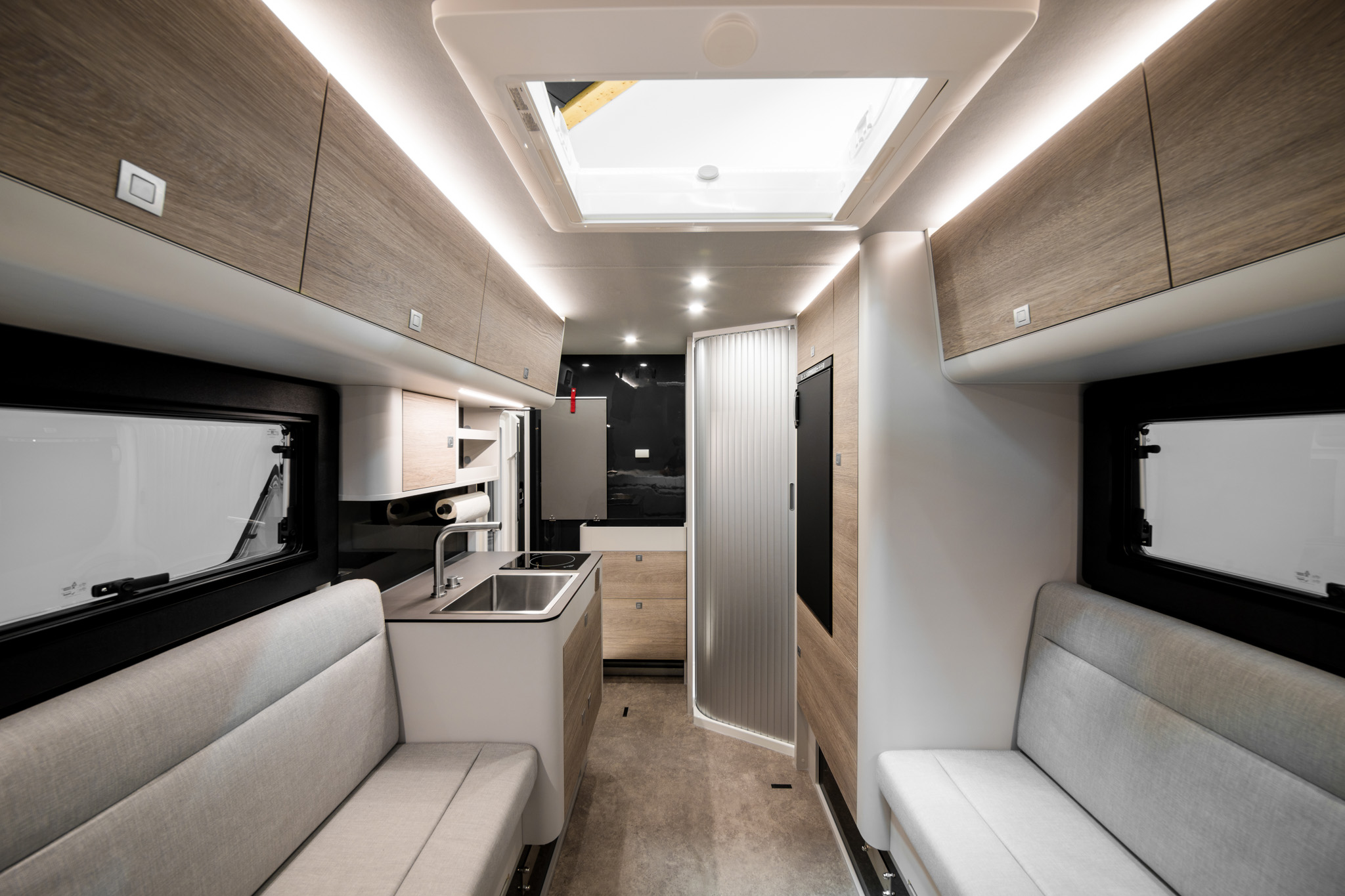

The WAW effect

a surprisingly spacious interior from the moment you step in.

Meet the Revolux range

You can choose between two length options, depending on your needs and your vehicle

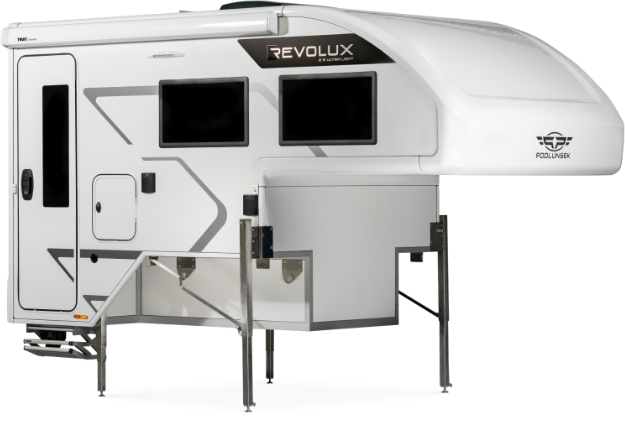

Revolux 2.5

Revolux 2.5

Fits to all European and Japanese
pickup trucks with double cab.

View specifications
Revolux 2.5

Revolux 2.8

Fits to all European and Japanese 1.5 cabins as well as
American pickup trucks with 5.5 and 5.7 feet box.

View specifications
REVOLUX 2.5 Ultra Light
Construction Material
Carbon Fibre (molded parts) GRP (30–50 mm sandwich panels)
External dimensions (LxWxH)
4260x2085x2250 mm
Bed capacity
2–3
Bed size
1600 x 2000 mm
Seating area (width)
750 mm
Overhang / Bottom clearance
945 mm
Fresh water capacity
110 L
Grey water capacity
67 L
Upper cabinets (total volume)
250,4 L

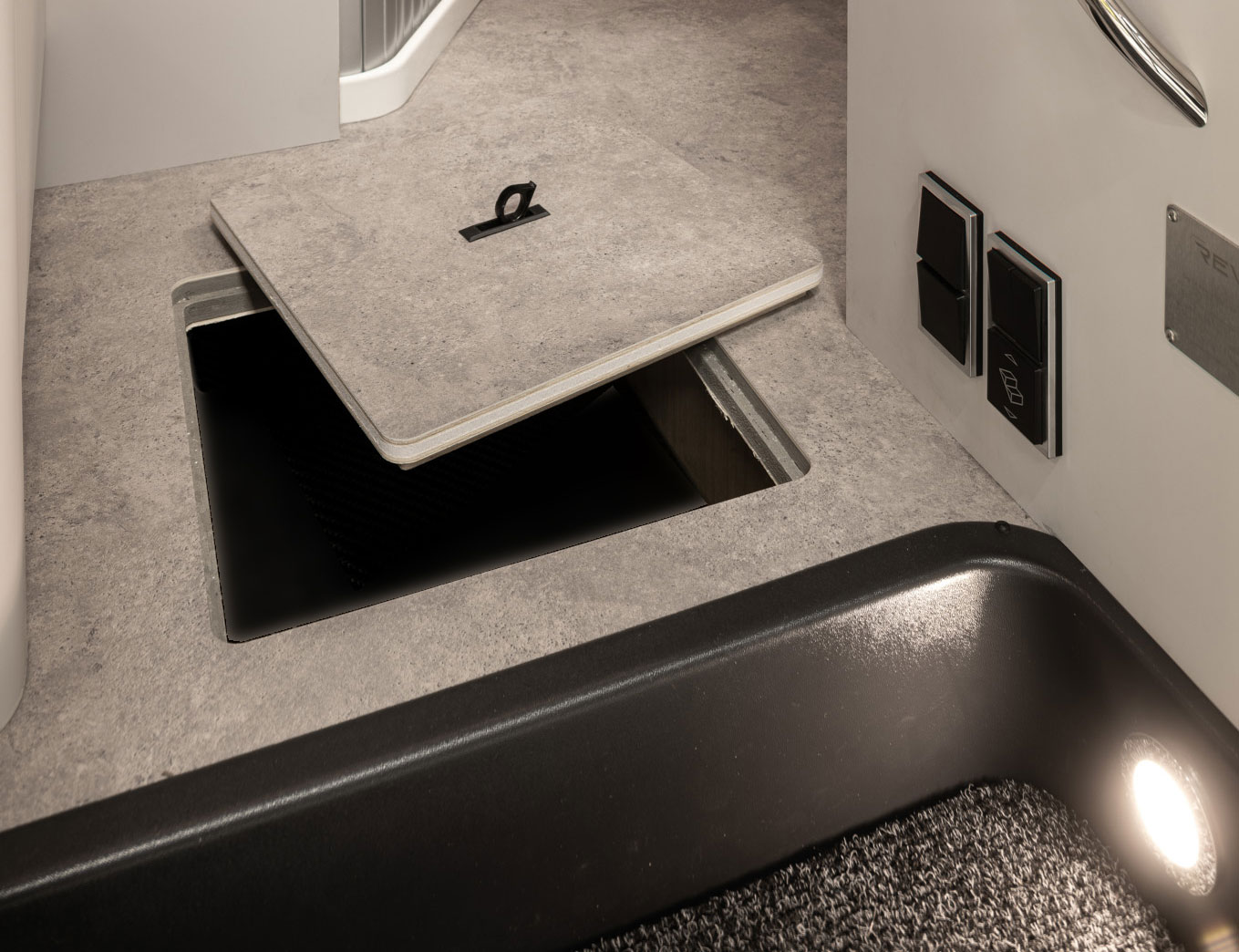

Storage space in the double floor
80 L
Weight with standard equipment
706 kg
Equipment

  • External colour: Soft White
  • 3x side window with shades and flyscreen (800x450 mm)
  • Roof window with shades and flyscreen (700x500 mm)
  • Entrance door with key lock, shades and flyscreen (1925x630 mm)
  • Manual step (550 mm)
  • Rear LED lights
  • 3rd stop light
  • Service door for gas bottles (450×500 mm)
  • Service door on the left side (630×550 mm)
  • CEE socket for electricity
  • Fresh water socket with key lock
  • Manual jacking system

  • Furniture color options:
    • Shadow
    • Honey
    • Cocoa
  • Upright narrow wardrobe with hanger rag
  • Storage cabinet above the fridge
  • 2x hanging wall cabinet (left)
  • 3x hanging wall cabinet (right)
  • Semi-open storage space in alkoven (left and right)
  • 3rd stop light
  • Shoe cabinet with two compartments
  • Movable table in salon
  • Seating area (1100x450 mm) with storage space (left and right)
  • Upolstery options in salon:
    • Mint
    • Stone
    • Dune
    • Graphite
  • Bed mattress (1600x2000 mm)
  • Mesh system under the mattress
  • LED light system + LED ambient light
  • Truma 4E

  • Queensize stainless steel sink and faucet
  • Single gas burner
  • Kitchen storage element under the combined stove and sink
  • Kitchen wall element with storage space
  • Additional kitchen work surface (740 × 400 mm)
  • Refrigerator with freezer 92 L
  • Trash can

  • Bathroom roof window

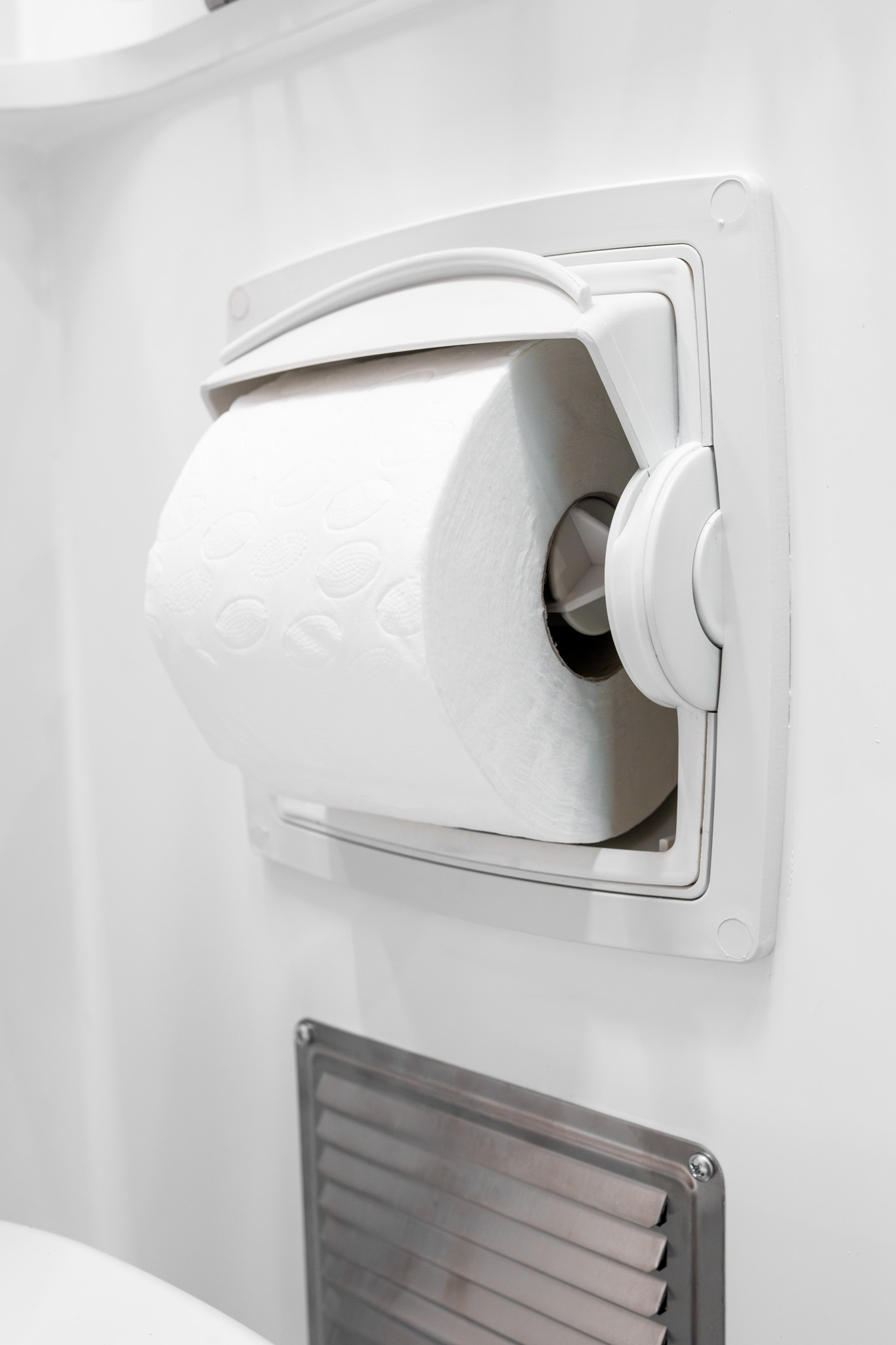

  • Toilet with ceramic inlay
  • Queensize shower with stainless steel faucet
  • Mirror and wall-mounted cabinet
  • LED light system

  • 110 L fresh water tank
  • 67 L waste water tank
  • Fresh water sensor
  • Grey water sensor

  • Simarine Caravan Control (control panel)
  • Mastervolt Charger
  • Mastervolt AGM Battery 130Ah
  • Mastervolt Macplus (DC-DC charger)
  • 13pin connection with pickup truck for lights
  • Mastervolt 50A charger
  • 2x USB A/C socket (above bed left & right)
  • 3x 230V Schuko socket (salon area, kitchen, bathroom)

  • Box for 2x 5 kg gas bottles (gas bottles not included)
  • Automatic valve for two bottles
Price from
Destination charges are not included.
The price valid for EXW factory Medicop, Nemčavci – Murska Sobota, Slovenia.
53.075,00 EUR
Disclaimer: The images shown contain renderings and sketches — the actual design and colors of the production product may differ slightly. Prices and features shown here are based on current market availability and are subject to change. For a binding offer, please contact your nearest dealer.
REVOLUX 2.8 Ultra Light
Construction Material
Carbon Fibre (molded parts) GRP (30–50 mm sandwich panels)
External dimensions (LxWxH)
4260x2085x2350 mm
Bed capacity
2–3
Bed size
1600 x 2000 mm
Seating area (width)
1050 mm
Overhang / Bottom clearance
945 mm
Fresh water capacity
110 L
Grey water capacity
67 L
Upper cabinets (total volume)
287,8 L
Storage space in the double floor
110 L
Weight with standard equipment
736 kg
Equipment

  • External colour: Soft White
  • 3x side window with shades and flyscreen (800x450 mm)
  • Roof window with shades and flyscreen (700x500 mm)
  • Entrance door with key lock, shades and flyscreen (1925x630 mm)
  • Manual step (550 mm)
  • Rear LED lights
  • 3rd stop light
  • Service door for gas bottles (450×500 mm)
  • Service door on the left side (630×550 mm)
  • CEE socket for electricity
  • Fresh water socket with key lock
  • Manual jacking system

  • Furniture color options:
    • Shadow
    • Honey
    • Cocoa
  • Upright narrow wardrobe with hanger rag
  • Storage cabinet above the fridge
  • 2x hanging wall cabinet (left)
  • 3x hanging wall cabinet (right)
  • Semi-open storage space in alkoven (left and right)
  • 3rd stop light
  • Shoe cabinet with two compartments
  • Movable table in salon
  • Seating area (1100x450 mm) with storage space (left and right)
  • Upolstery options in salon:
    • Mint
    • Stone
    • Dune
    • Graphite
  • Bed mattress (1600x2000 mm)
  • Mesh system under the mattress
  • LED light system + LED ambient light
  • Truma 4E

  • Queensize stainless steel sink and faucet
  • Single gas burner
  • Kitchen storage element under the combined stove and sink
  • Kitchen wall element with storage space
  • Additional kitchen work surface (740 × 400 mm)
  • Refrigerator with freezer 92 L
  • Trash can

  • Bathroom roof window
  • Toilet with ceramic inlay
  • Queensize shower with stainless steel faucet
  • Mirror and wall-mounted cabinet
  • LED light system

  • 110 L fresh water tank
  • 67 L waste water tank
  • Fresh water sensor
  • Grey water sensor

  • Simarine Caravan Control (control panel)
  • Mastervolt Charger
  • Mastervolt AGM Battery 130Ah
  • Mastervolt Macplus (DC-DC charger)
  • 13pin connection with pickup truck for lights
  • Mastervolt 50A charger
  • 2x USB A/C socket (above bed left & right)
  • 3x 230V Schuko socket (salon area, kitchen, bathroom)

  • Box for 2x 5 kg gas bottles (gas bottles not included)
  • Automatic valve for two bottles
Price from
Destination charges are not included.
The price valid for EXW factory Medicop, Nemčavci – Murska Sobota, Slovenia.
54.450,00 EUR
Disclaimer: The images shown contain renderings and sketches — the actual design and colors of the production product may differ slightly. Prices and features shown here are based on current market availability and are subject to change. For a binding offer, please contact your nearest dealer.

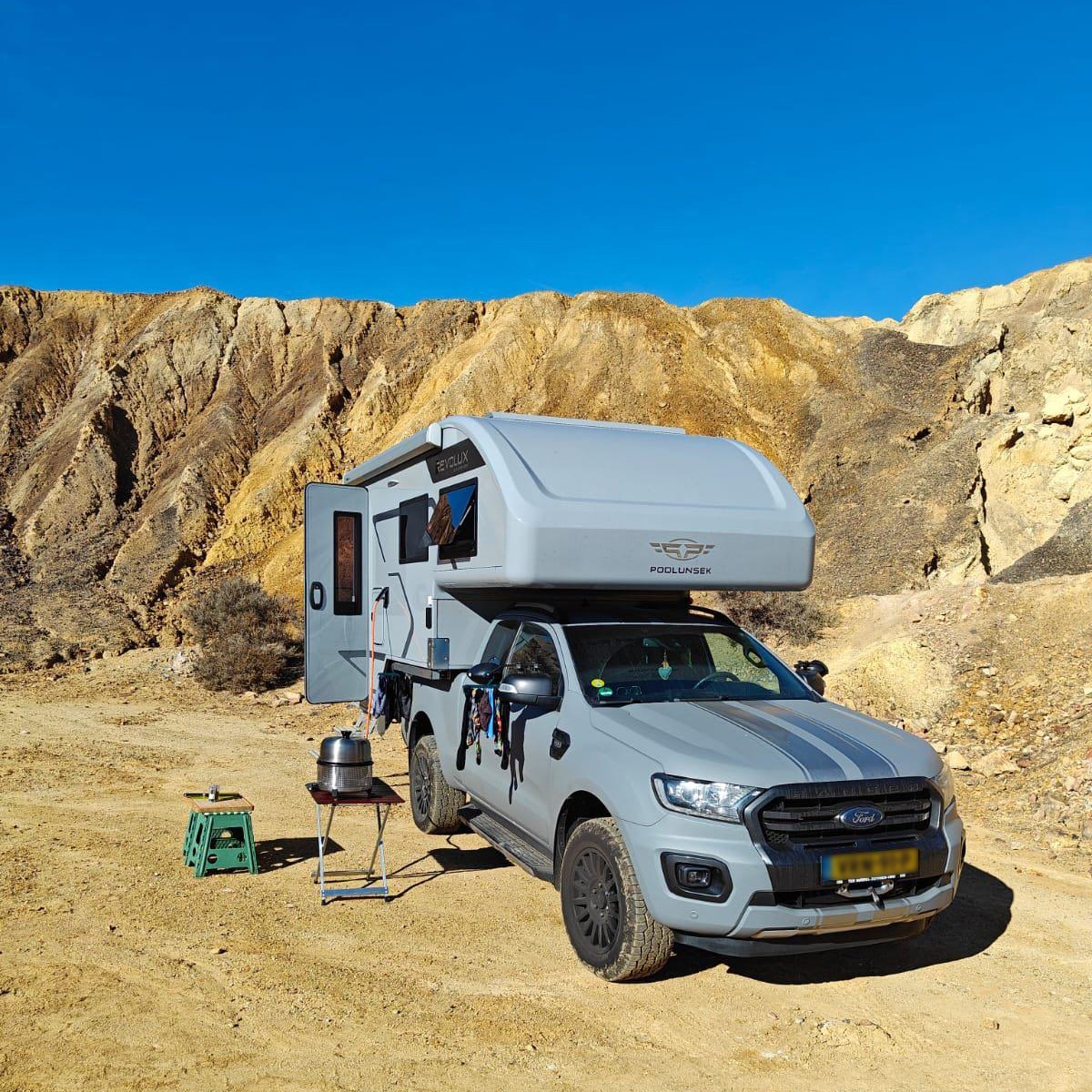

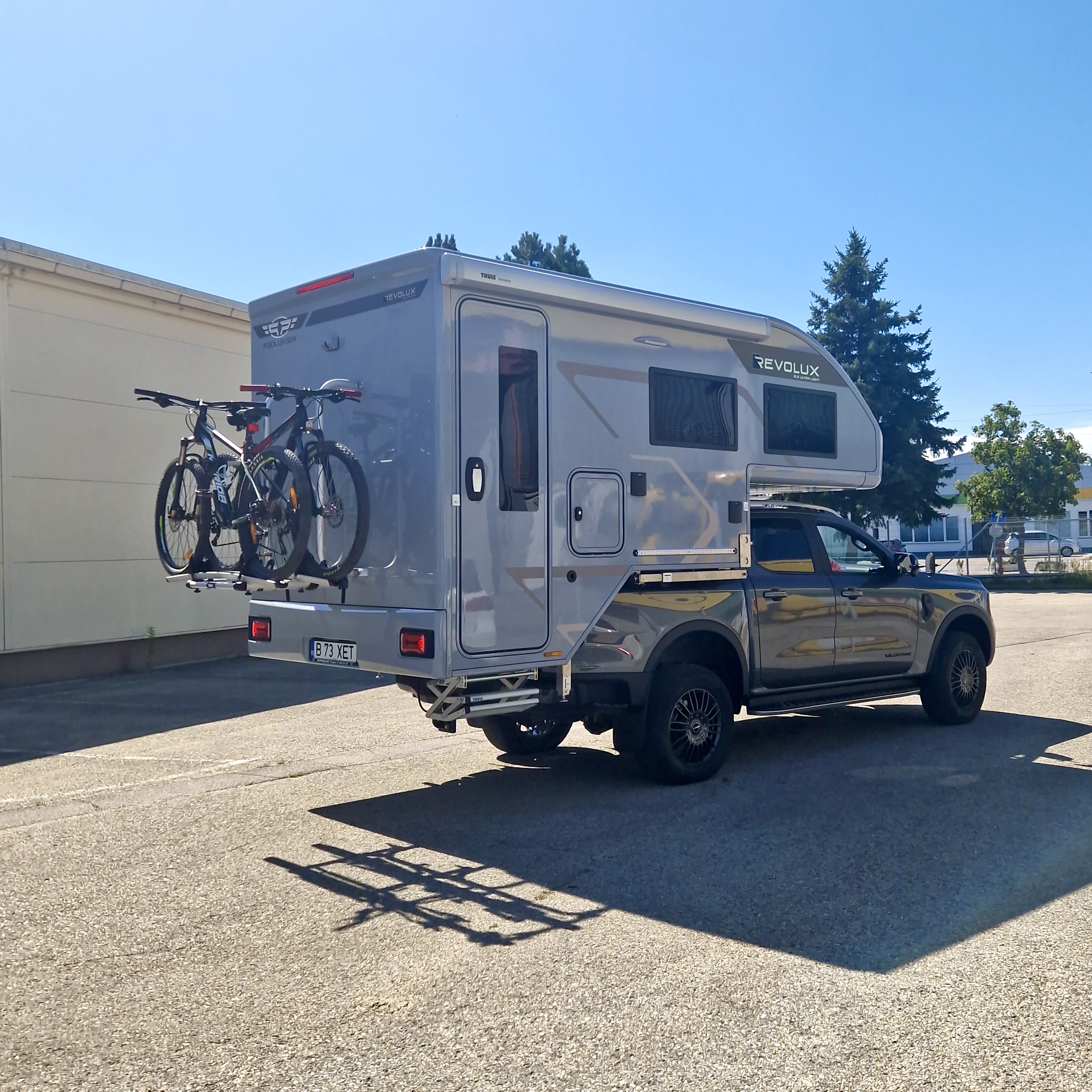

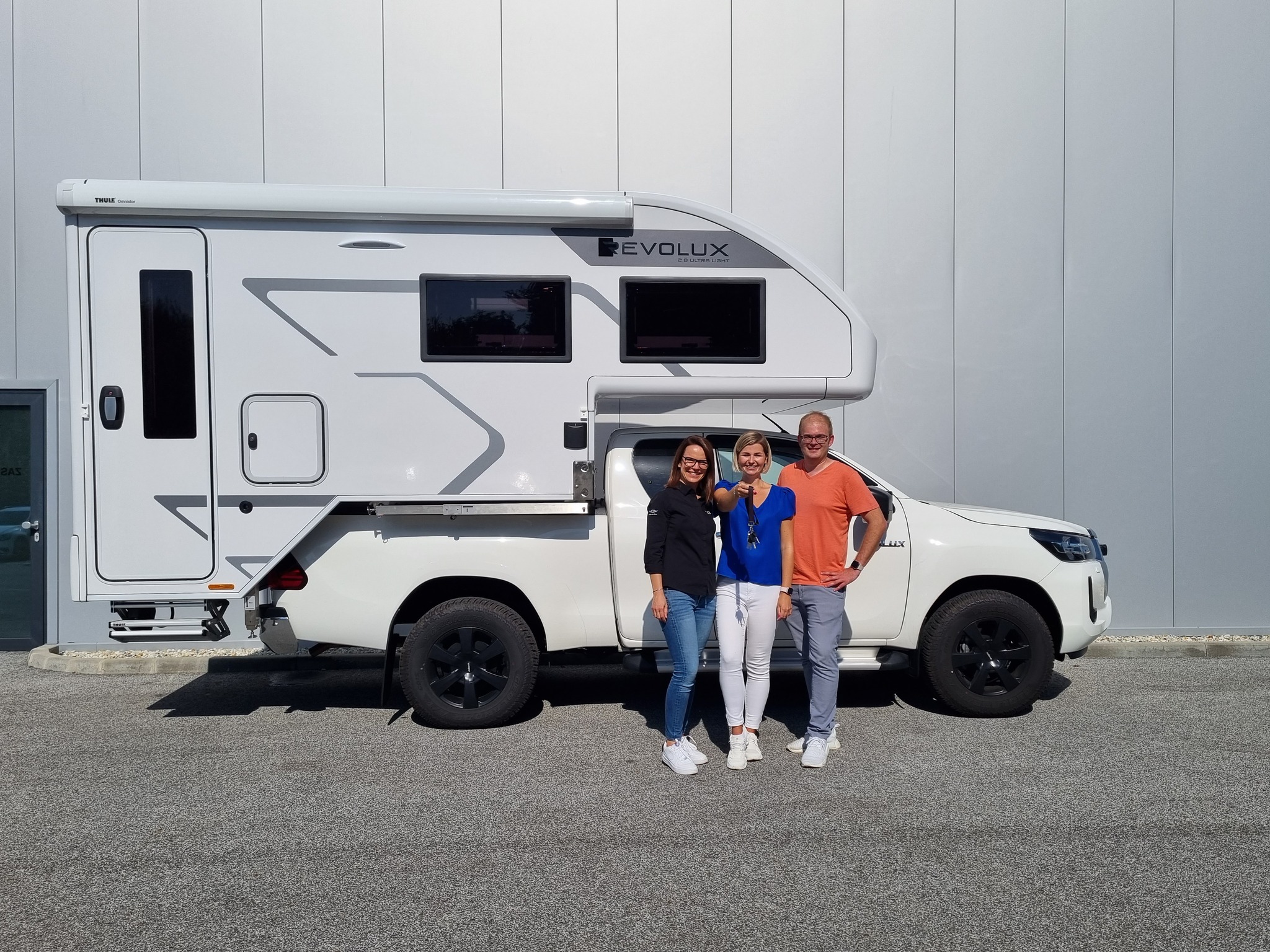

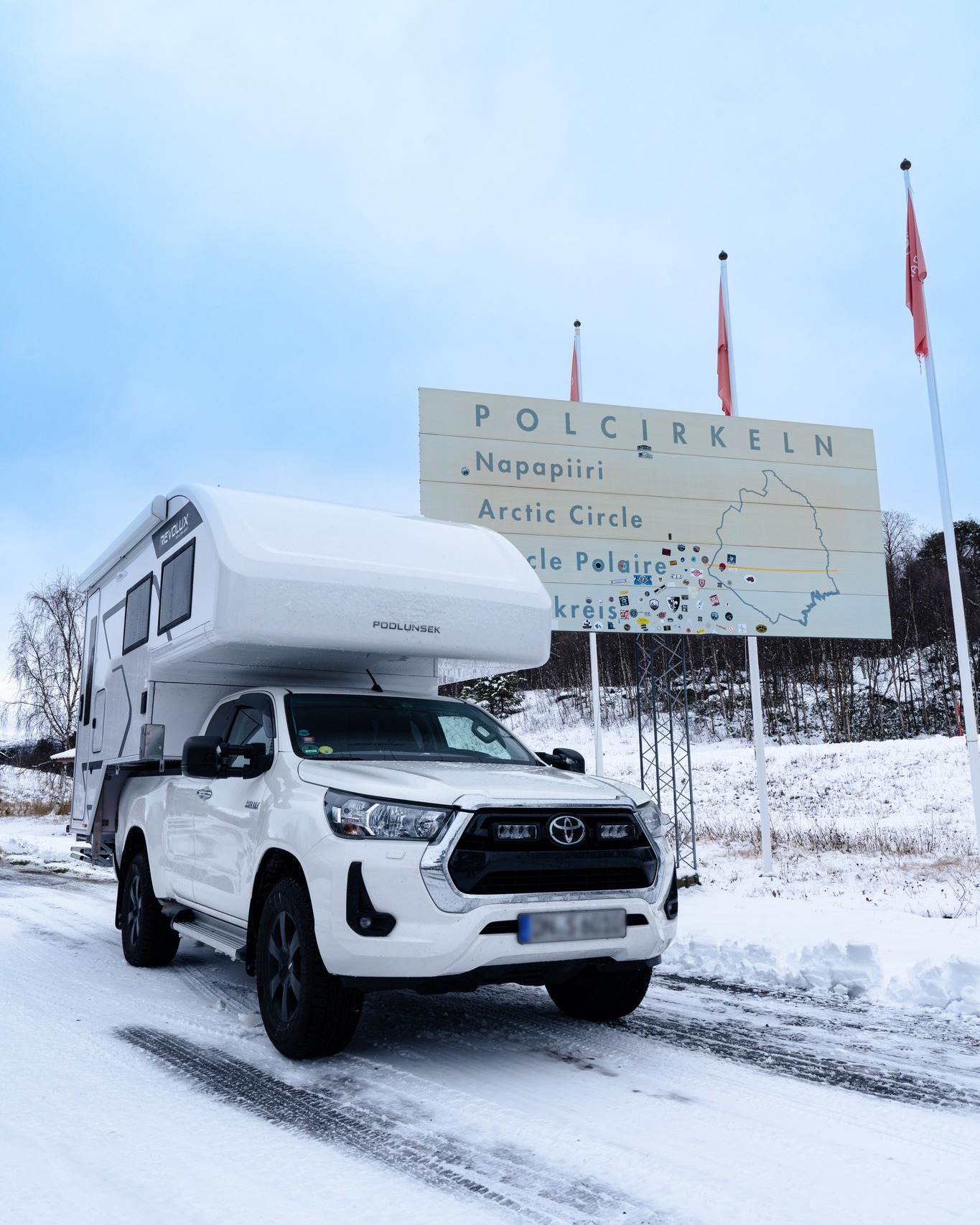

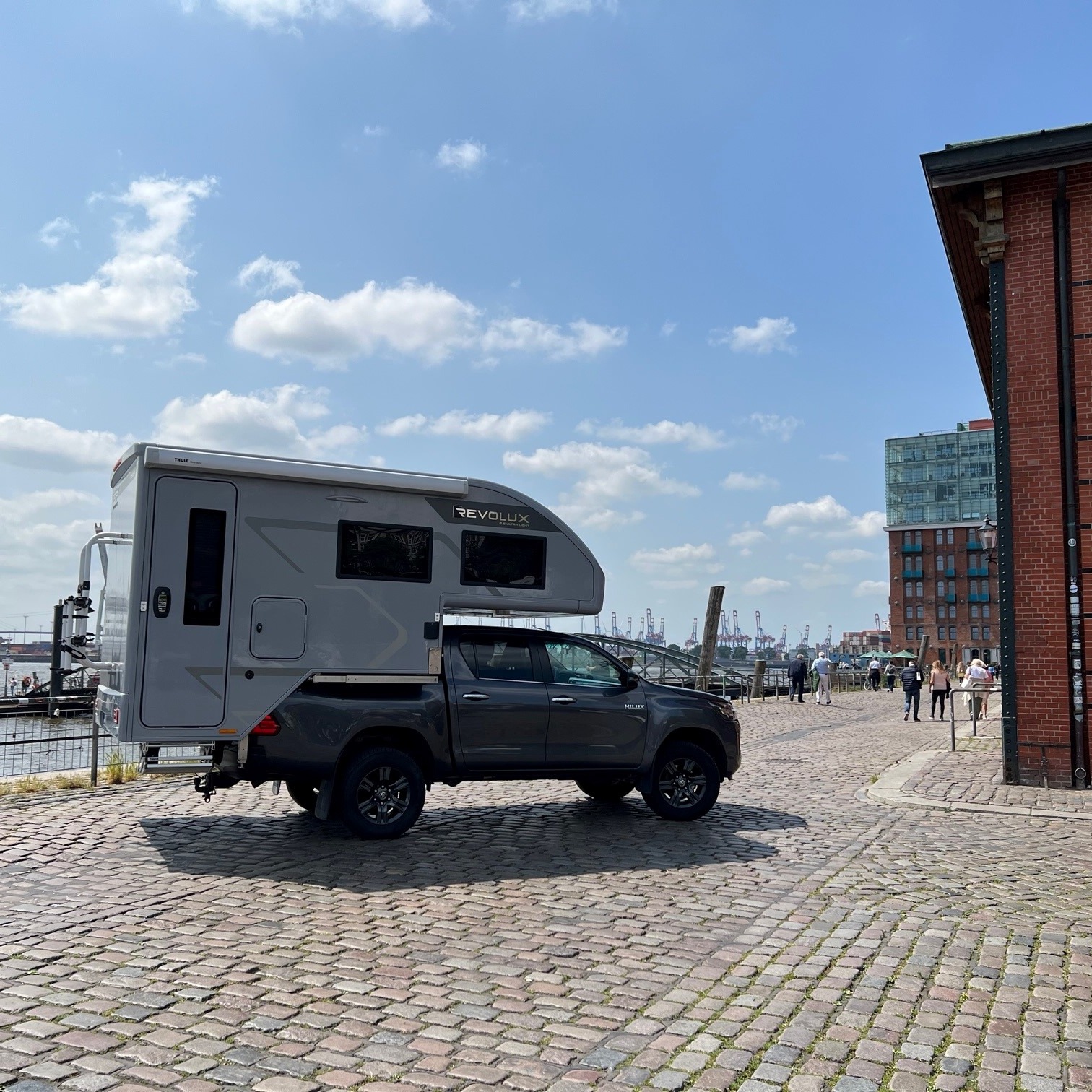

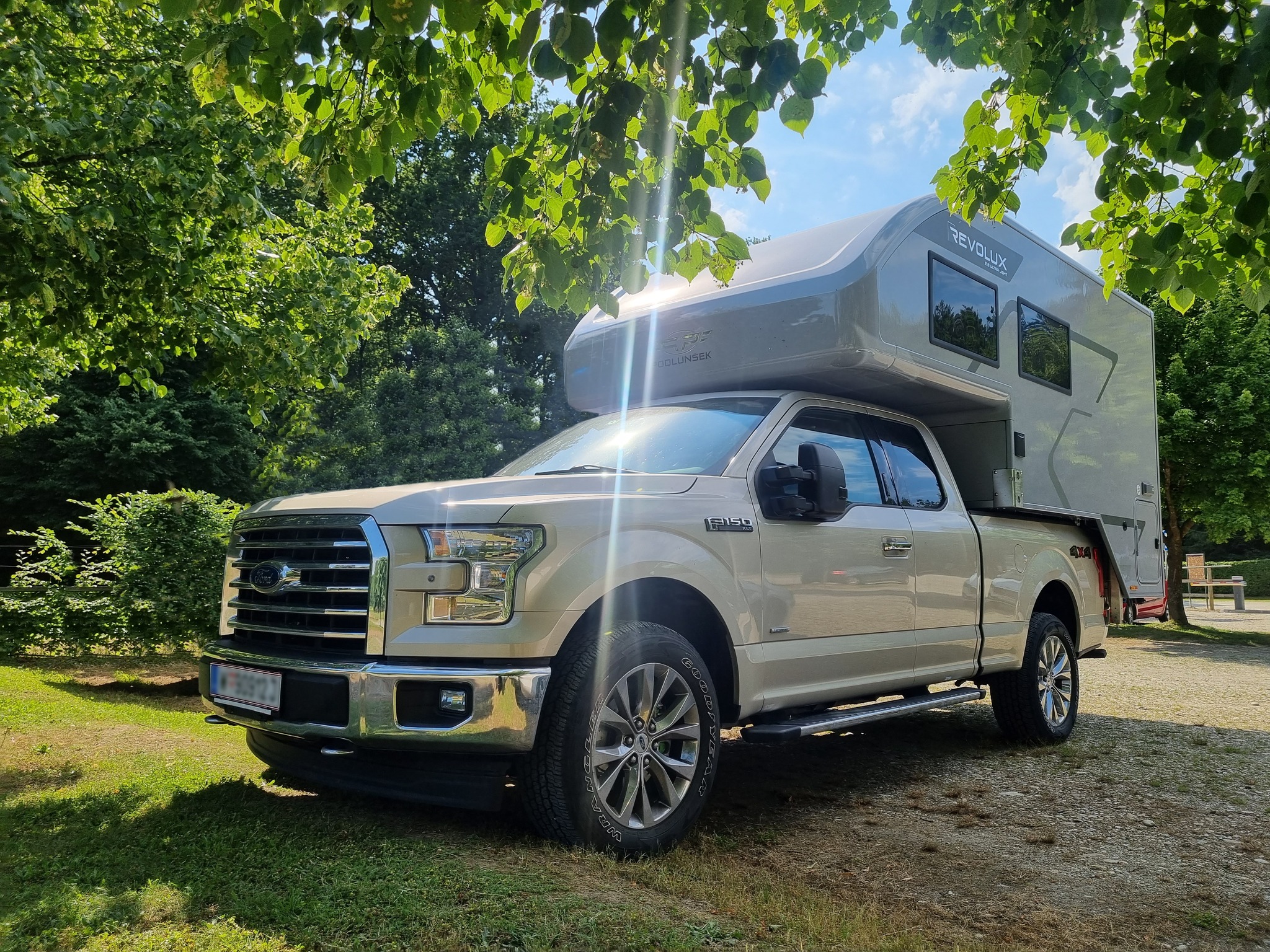

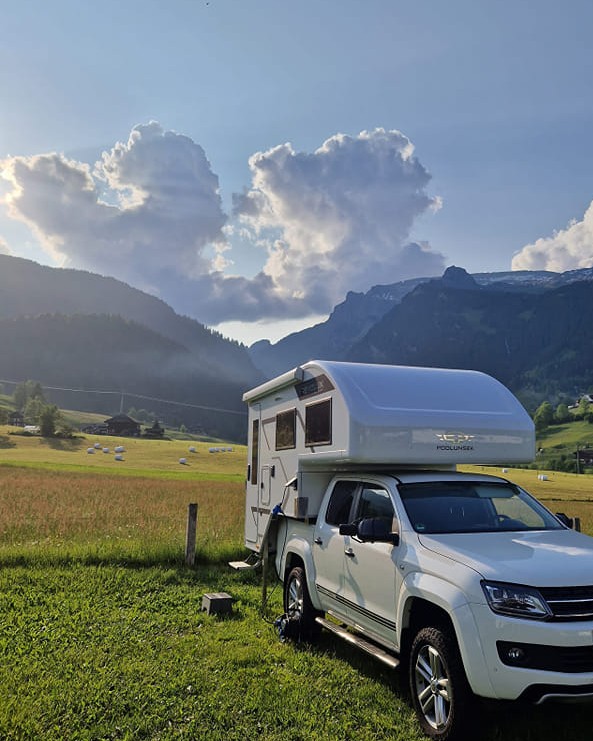

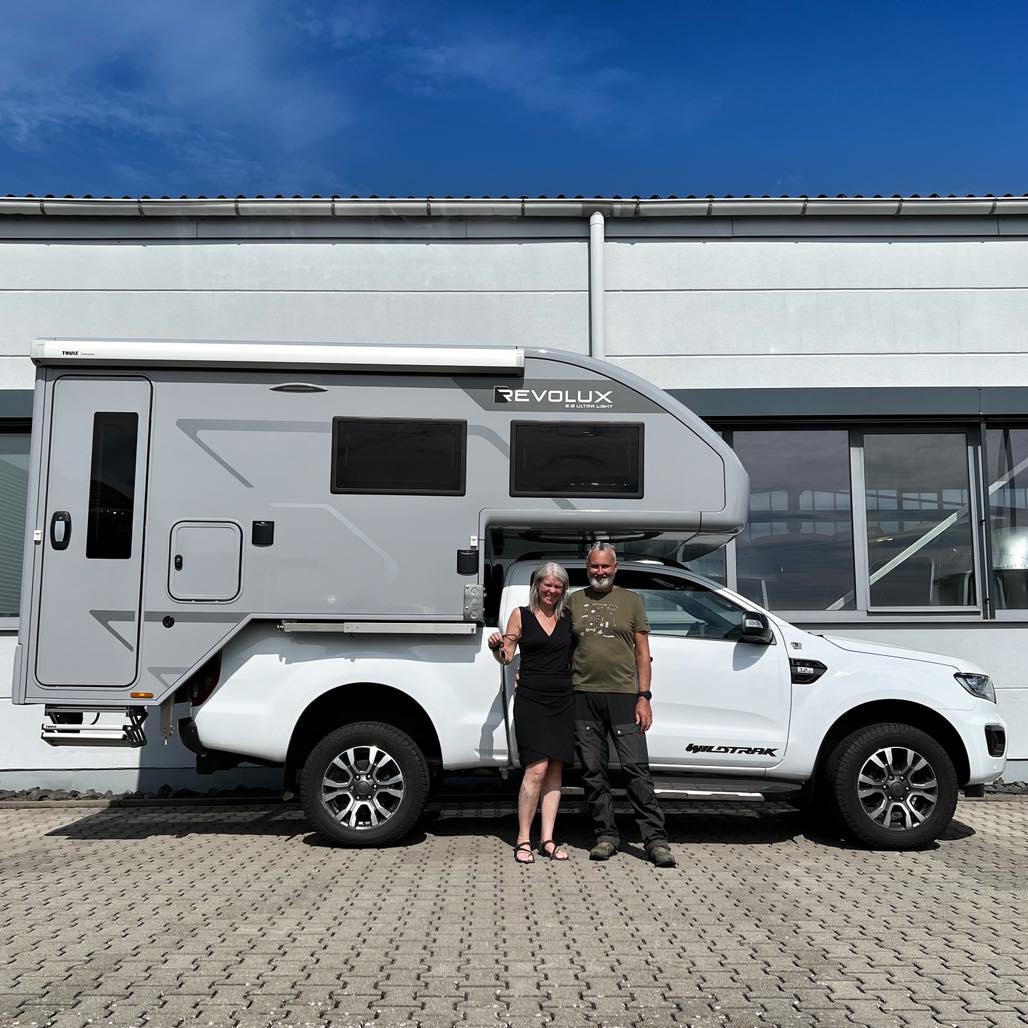

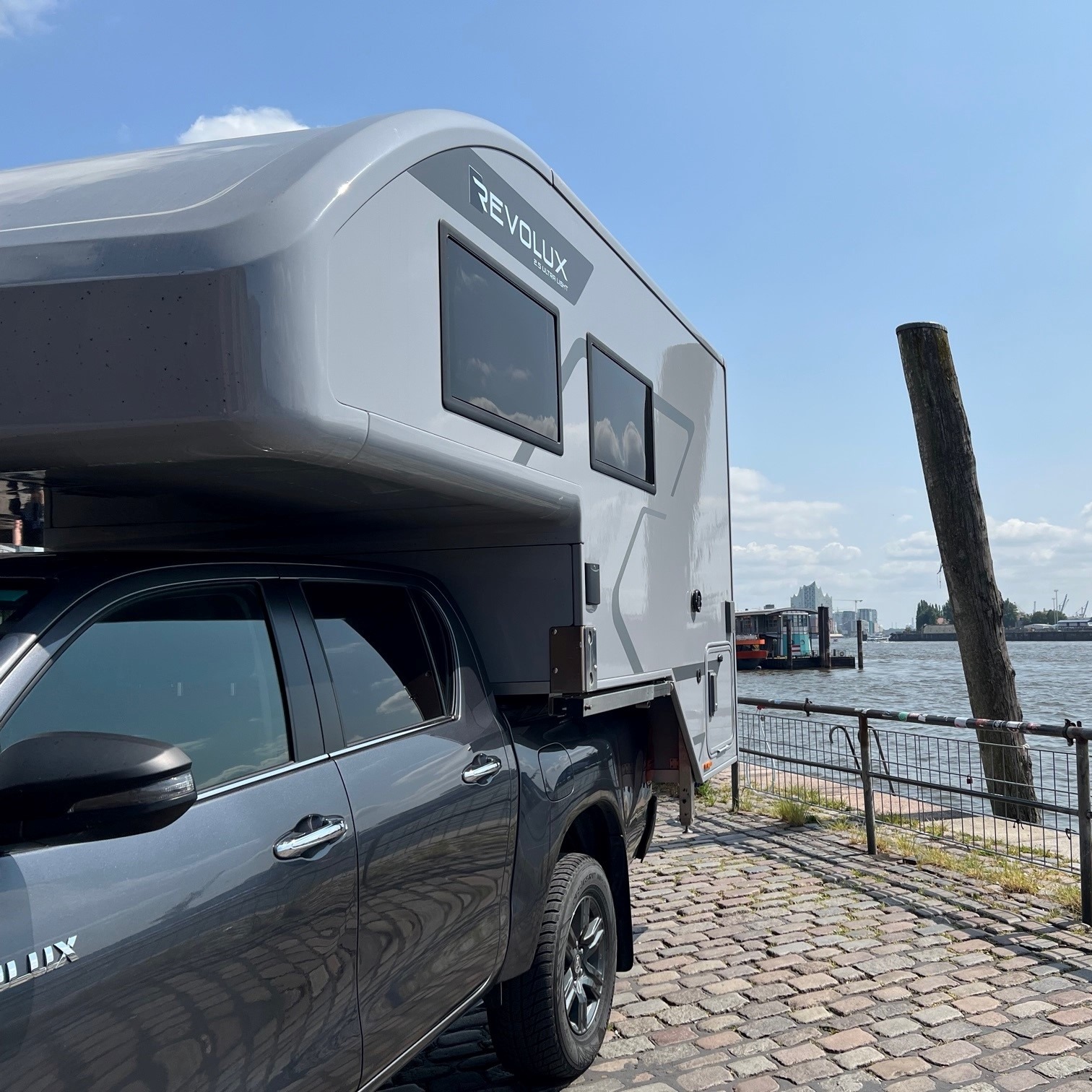

Revolux in real life

Revolux owners are genuinely impressed from the moment they step inside — the WAW effect is immediate, and the layout feels unexpectedly open. These real journeys and photos reflect trusted reliability — and the confidence that comes with traveling in a truly premium cabin.
